| Material | Line Interval (mm) | Speed (mm/min) | Power (%) | Note |
|---|---|---|---|---|
| Basswood | 0.12mm | 13000 | 100 | |
| Leather | 0.12mm | 20000 | 40 | |
| Kraft Paper | 0.12mm | 20000 | 65 | |
| MDF | 0.12mm | 20000 | 65 | |
| Carton | 0.12mm | 20000 | 60 | |
| Stainless Steel | 0.09mm | 3000 | 100 | It is recommended to choose a thicker stainless steel. |
| Anodized Aluminum | 0.09mm | 15000 | 100 | |
Wrench (galvanized iron) | 0.09mm | 4000 | 100 | |
| Glass | 0.12mm | 20000 | 70 | Engraving is done after the material is blackened or color paper is applied to the surface |
| Ceramics | 0.12mm | 20000 | 70 | The engraving is done after the color paper is applied to the surface of the material. |
| Acrylic | 0.12mm | 20000 | 40 |
Material | Thickness | Speed (mm/min) | Power (%) | Passes | Note |
|---|---|---|---|---|---|
| Plywood | 4mm | 600 | 100 | 1 | |
| Plywood | 6mm | 400 | 100 | 1 | |
| Plywood | 8mm | 300 | 100 | 1 | |
| Plywood | 10mm | 200 | 100 | 1 | |
| Plywood | 12mm | 100 | 100 | 1 | Focal length reduced to 2 mm |
| Bamboo | 4mm | 400 | 100 | 1 | |
| Bamboo | 8mm | 200 | 100 | 1 | Focal length reduced to 2 mm |
| Paulownia Wood | 15mm | 200 | 100 | 1 | |
| Paulownia Wood | 20mm | 150 | 100 | 1 | |
| Pine Wood | 5mm | 500 | 100 | 1 | |
| Pine Wood | 10mm | 200 | 100 | 1 | |
| Leather | 1mm | 4500 | 100 | 1 | |
| Kraft Paper | 1mm | 4500 | 100 | 1 | |
| EPE foam board | 10mm | 1000 | 40 | 1 | |
| MDF | 2mm | 800 | 100 | 1 | |
| MDF | 3mm | 700 | 100 | 1 | |
| MDF | 5mm | 200 | 100 | 1 | |
| Acrylic | 2mm | 400 | 100 | 1 | Must be black opaque acrylic to cut. |
| Acrylic | 4mm | 200 | 100 | 1 | |
| Acrylic | 6mm | 200 | 100 | 2 | |
| Acrylic | 10mm | 200 | 100 | 4 | |
| Acrylic | 15mm | 200 | 100 | 6 |
Warm Tips：
Pay attention to the speed and power units mentioned above, and make sure to convert them appropriately in Lightburn and LaserGRBL software.
If you're working with materials that have a low burning point, it's not recommended to set the cutting speed below 100mm/min, as it could potentially cause burning.
Even if you're using the same material, the results can vary based on surface treatment or color. Therefore, it's important to adjust the speed and power settings according to the specific objects you're working with. Additionally, try to optimize the focal length to achieve the smallest possible focal point.
There are certain materials that cannot be engraved or cut directly, such as glossy metal plates, transparent materials, reflective materials, and some white or translucent materials. In such cases, you'll need to darken the material with a marker before carving.
Laser Engraver Assembly Manual
If you purchased a non-pre-installed version of ACMER P2 Series, you can download the Assembly Manual. for reference, and you can also watch the installation tutorial on our official youtube channel.
How to use APP to control laser engraving
If you want to control the laser engraving machine through your mobile phone as a terminal, you can read the App operation manual. You can learn how to connect to the machine via wifi. For specific IP and port settings, please read the manual.
Free software to convert image for laser engraving
LaserGRBL is a highly effective Windows software for laser engraving images. With just a few clicks, LaserGRBL can load any image, picture, or logo and send it to your laser engraving machine. Specifically designed for hobbyist laser cutters and engravers, LaserGRBL is a great free and user-friendly alternative. If you're looking for a simple and efficient tool, LaserGRBL is an excellent option.
The Best Laser Engraver & Cutter Software
LightBurn is a versatile software designed for laser cutters, offering layout, editing, and control capabilities. With LightBurn, you can import artwork in a variety of vector graphic and image formats, edit and create new vector shapes, and apply settings such as power, speed, and cut order. The software supports multiple operating systems, including Windows, Mac OS, and Linux, and allows you to send your designs directly to your laser cutter.
How to Upgrade a Laser Engraver ACMER P2
ACMER P2 firmware update is an important step to ensure that your laser engraving machine performs better and has more features. To avoid errors during the update process, we have prepared a simple and easy-to-understand firmware update guide for you. Before upgrading the firmware, please make sure that you have backed up all important data to prevent data loss. The steps to update the firmware are very simple and can be completed by following the few simple steps provided in the guide. Please note that before updating the firmware, please read and understand all the steps carefully to ensure that you can complete the upgrade correctly. By following the firmware update guide we provide, you can easily complete the firmware update and get a better user experience with your laser engraving machine.
What is the warranty period for the machine?
12 months
ls it difficult to assemble the laser engraving ACMER P2?
Very simple. The machine can be assembled within one minute.
What materials can be engraved and cut?
Include wood, plywood, acrylic, aluminum oxide, ceramics.glass, leather, slate, etc Supported cutting materials include wood, plywood, acrylic, thin metasheets, etc. ACMER engraving parameter table contains parameters for different materials.
ls it possible to upgrade the laser module, such as from 20W to 33W?
Yes, you can purchase any laser module for ACMER P2 series, including 10W and 33W, in theaccessories category.
How to lmprove the Cutting Ability of ACMER P2?
The primary factors that affect the cutting ability are the laser module's power and the auxiliary air pump. To achieve a strong cutting ability, you can consider purchasing a 33W laser module and upgrading to the gas auxiliary system ACMER C4 (30L/min). Additionally, using a honeycomb plate to assist gas circulation can be helpful.
For those who primarily focus on engraving scenes, our standard electromagnetic silent air pump that can produce an air output of 25L/min will meet your engraving needs. Any unauthorized modification of the air pump to increase its output may increase the risk of fire, unless an inert gas is used.
Zero Assembly, Starting in One minute
Industrial Guide Rails
Structure determines performance!
Incredibly Fast!
Upgradeable is Important!
Expansion Kit Enables Larger Creations!
Increasing laser power has a significant impact on engraving and cutting capabilities, resulting in a substantial boost in work efficiency. Moreover, it opens up new possibilities for creative endeavors, such as engraving vibrant gradients on stainless steel surfaces.
ACMER P2 33W stands out among numerous 30 watt laser engravers as the best-performing product. With its optical output power exceeding 30 watts and reaching an impressive 33 watts, it offers remarkable capabilities. The higher power translates to a wider range of engraving applications and formidable cutting ability.
Adding Color to Metal through Engraving
At 33 watts, the powerful laser power makes it easier to oxidize stainless steel surfaces in multiple shades of color, expanding your creative scene!

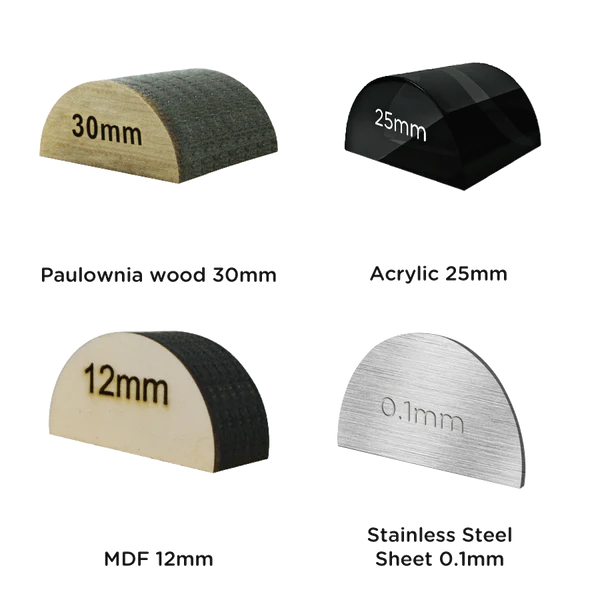

Powerful Cutting Capability
Experience the unimaginable as it effortlessly cuts through thick materials in a single pass, surpassing the capabilities of lower power machines. Equipped with a standard silent electromagnetic air-assist pump, it plays a crucial role in optimizing performance.
4 Security Protections
Highlights
J'ai la p2 33 watt le top du top
I recently purchased the ACMER Laser Engraving Machine 33w, and I am extremely impressed with its performance. The engraving precision is top-notch, and the machine is user-friendly. Highly recommended!
The ACMER Laser Engraving Machine 33w has exceeded my expectations. It delivers fast and precise engraving results. The build quality is excellent, and the software is intuitive. I'm thrilled with my purchase.
I've been using the ACMER Laser Engraving Machine 33w for my small business, and it has been a game-changer. The engraving quality is outstanding, and it can handle a variety of materials. It's a reliable and efficient machine.
The ACMER Laser Engraving Machine 33w is a fantastic investment for any hobbyist or professional. It offers great power and speed, allowing for detailed and intricate engravings. I'm very pleased with its performance.
