ACMER A500 Lightburn Camera

Free Shipping to US & EU

6 Months Warranty

30 Days

Return

24/7

Support

$99.00$139.00

4 Interest-free payments with klarna. View guidelines

Choose up to 24-months payment with klarna!

1. The bundled order may be shipped in multiple packages.

2. A500 lightburn camera will be shipped from U.S. or EU.

3. This A500 light-burning camera is not compatible with R10 exclusive box and L80 extension kit.

Package list

Safe & secure checkout

Order today, ships in 1  business day

ACMER A500 Lightburn Camera

What they say about ACMER A500 LightBurn Camera?


  • Specifications
  • Description
Pixel
5MP (2592*1944)
Sensor
1/2.5”CMOS Sensor
Pixel Size
2.2umx2.2um
FOV
D: 101°  H:88°  V: 71°
Photography range
450*450mm
Camera Size
42*42*29mm
Software
LightBurn
Driver
Driver-free for Windows/macOS systems

1. ACMER A500 Lightburn Camera

Suitable for all models of ACMER laser engraving machines, including P1, P2, and P1S series. It cannot be used with the Area Extension Kit.

2. Perfect compatibility with LightBurn

A500 is perfectly compatible with the CAM feature of Lightburn software.

3. Industrial Camera for Laser Engraving Machines

A500 is specifically designed for laser engraving machines. With true high-definition 5MP, the camera can capture clearer images and achieve more accurate positioning.

After simple calibration, this camera can automatically locate the position of the object and perform area-based engraving. The positioning error is less than 0.5mm. You can use the Lightburn software interface to move the design to a specific position on the material, and the laser machine will engrave the pattern at that position.

4. Work Preview

ACMER A500 camera perfectly solves the positioning issue for irregular patterns. Now you can design directly on the surface of the material and see the exact result.

5. Multi-Tasking Batch Engraving

 You can add multiple engraving objects and complete different independent tasks at once.

6. Compatible with Multiple Brands of Engraving Machines

ACMER camera can be adapted to all ACMER or other brand frame laser engraving machines

Note.

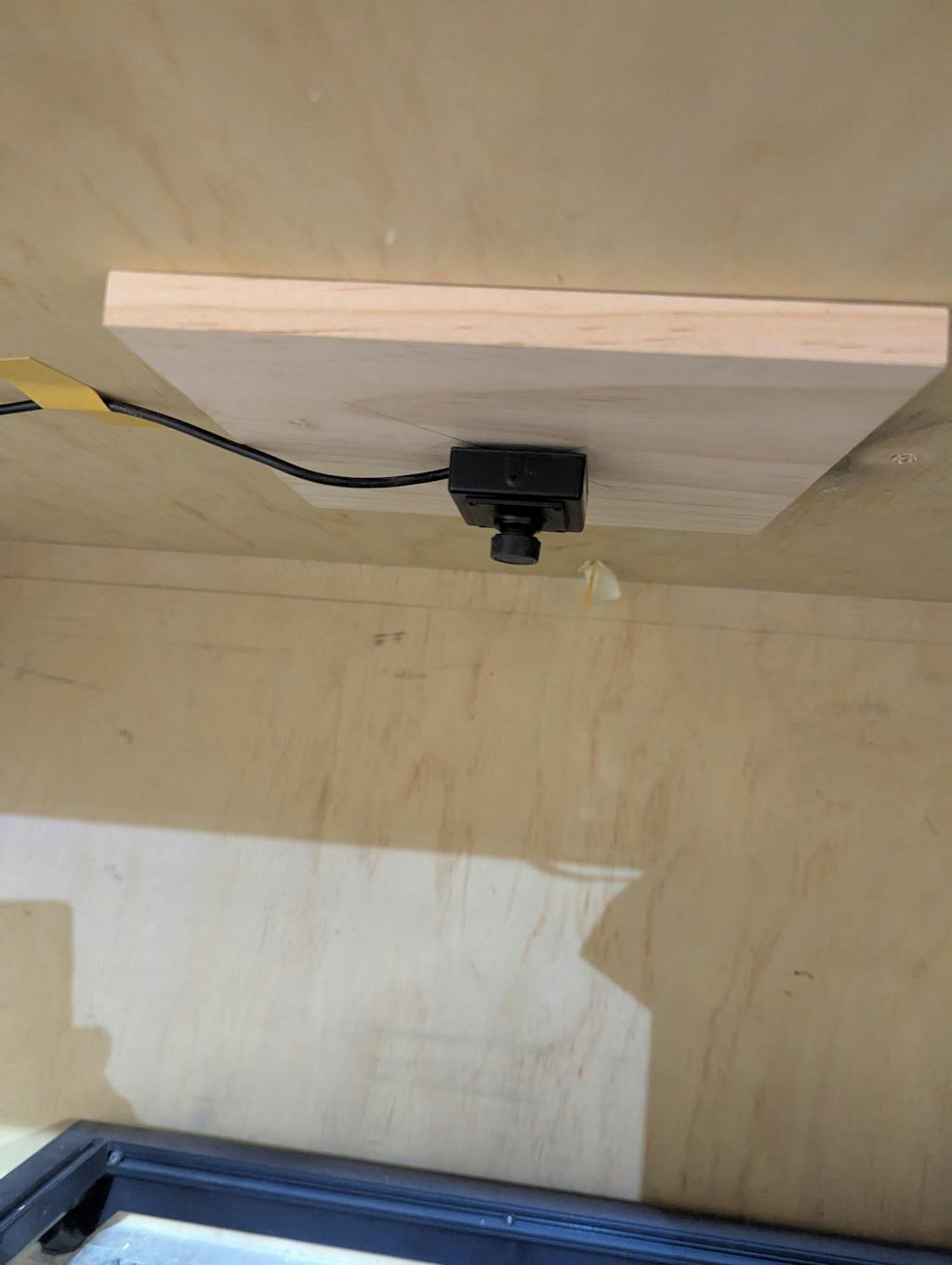

Please place the objects as close to the center of the camera as possible, within the 450*450mm working area. As the engraved objects move away from the center of the camera, the accuracy will decrease.

ACMER A500 Lightburn Camera
ACMER A500 Lightburn Camera
ACMER A500 Lightburn Camera
ACMER A500 Lightburn Camera
ACMER A500 Lightburn Camera
ACMER A500 Lightburn Camera

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
c
chris bird

Camera was recognized by computer and lightburn. Take the time to do the calibration process correctly. There is additional XY correction within the camera control window. Pretty easy setup. I’ve only used it for basic alignment on coasters and leather patches, but it makes it so much easier to get.a perfect placement.
