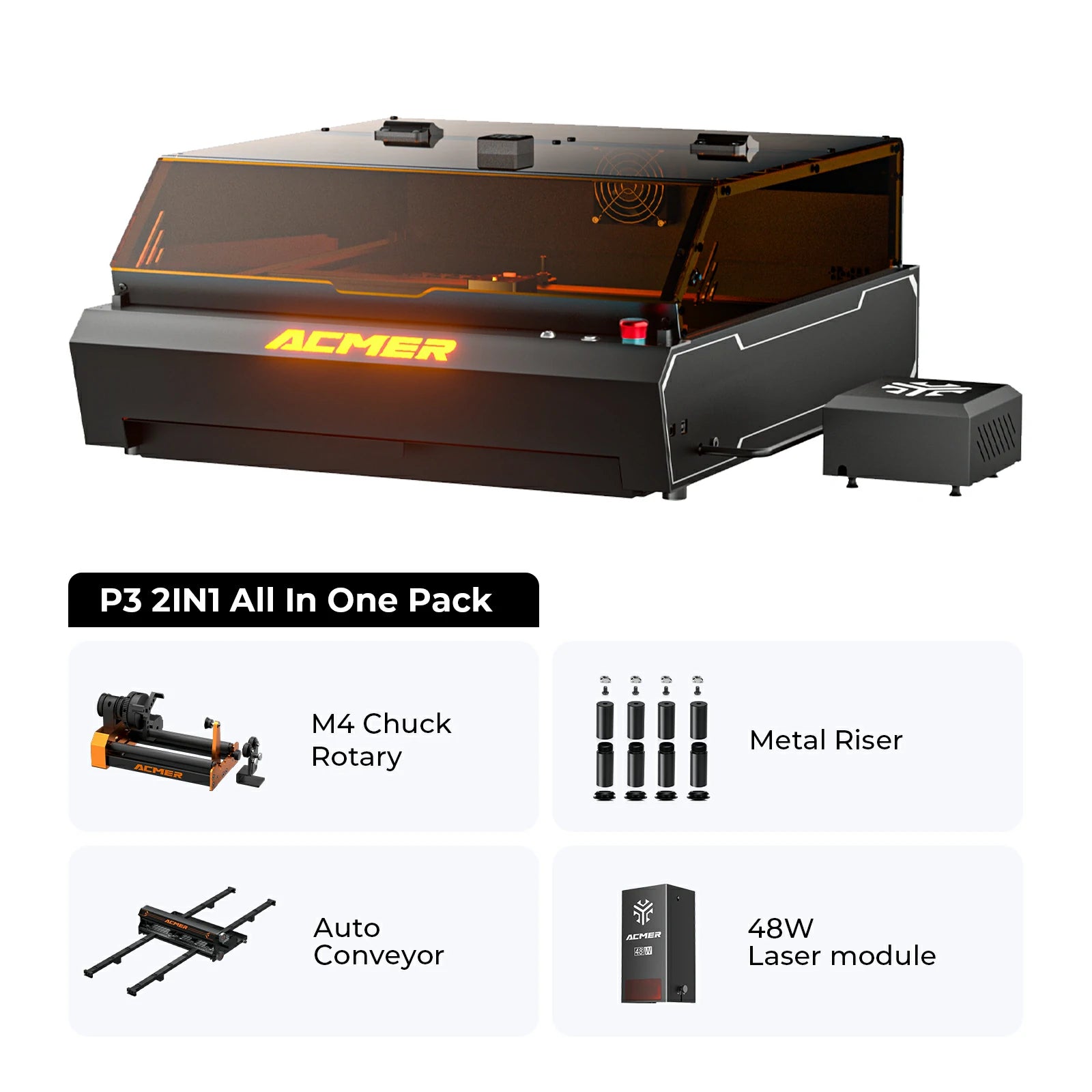

ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-2IN1 all in one kit

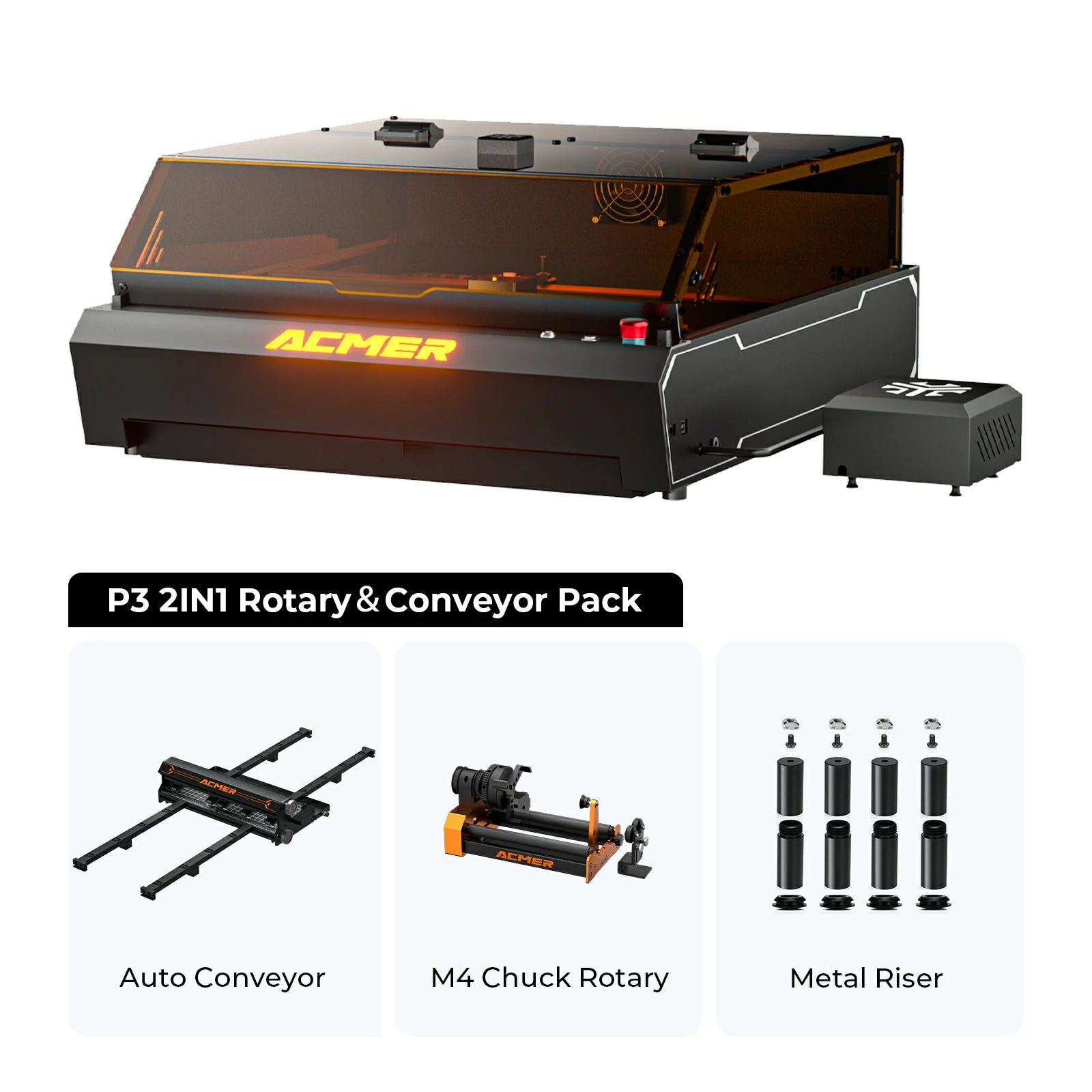

ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-2IN1+auto conveyor+risers

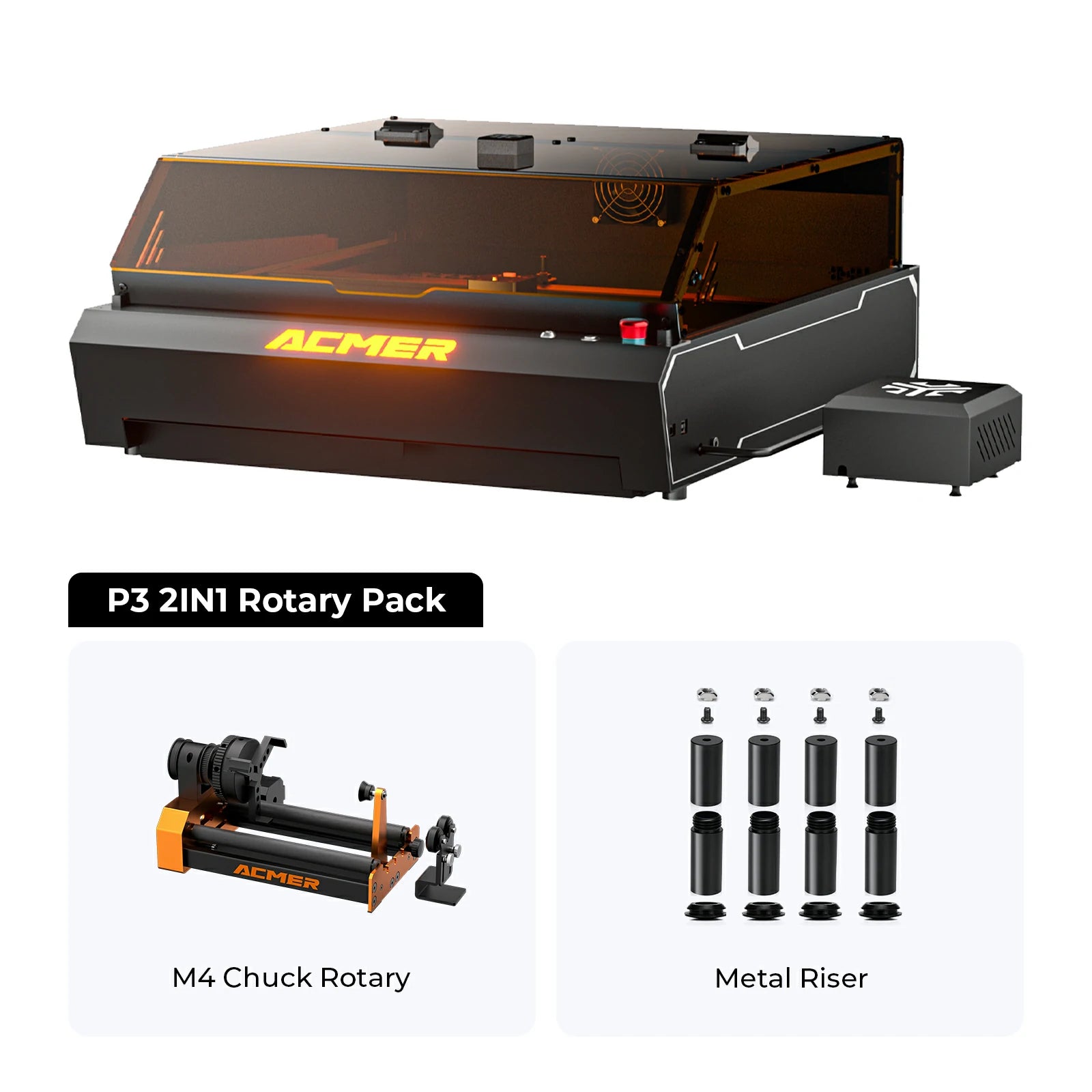

ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-2IN1+rotary+risers+lightburn
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-2WIR all in one kit
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-2WIR+auto conveyor+risers
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-2WIR+rotary+risers+lightburn
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-48W all in one kit
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-48W+auto conveyor+risers
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-48W+rotary+risers+lightburn
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-24W all in one kit
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-24W+auto conveyor+risers
ACMER P3 IR＆Diode Enclosed Dual Laser Engraver-24W+rotary+risers+lightburn

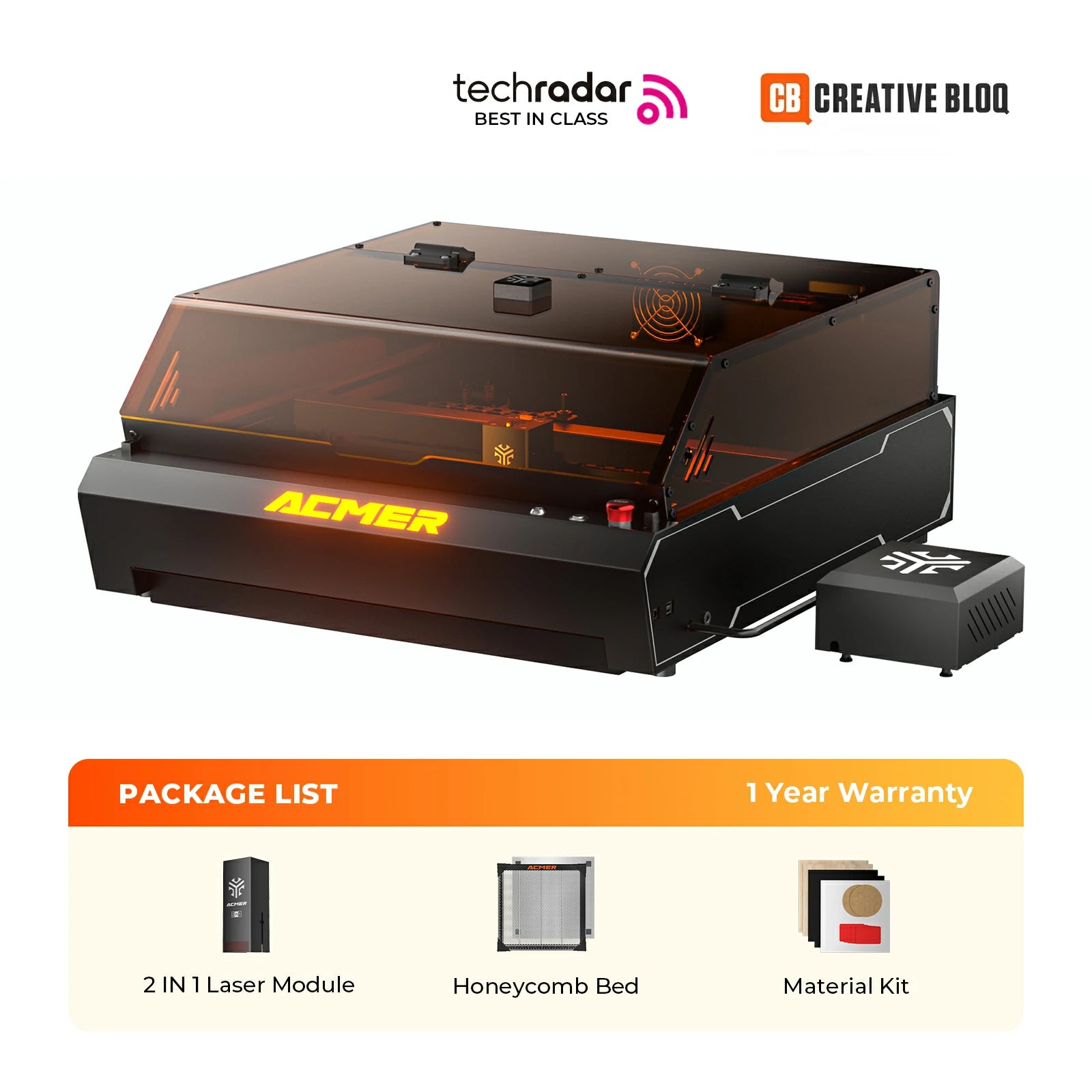

ACMER P3 IR＆Diode Enclosed Dual Laser Engraver

A laser engraving and cutting machine for home use
$1,499.00
$1,999.00

World's first enclosed Diode and IR dual laser engraver.

48W powerful laser cutting capacity, up to 50mm wood cutting.

Maximum engraving speed 48000mm/min.

Equipped with a high-precision camera with 400*400 area.

Class 1 certified safety laser engraving machine.

Free 30L air pump and adaptable honeycomb bed.
Type
Package

Free Shipping to US＆EU

1 Year Warranty

30 Days Return

What are the reviews regarding the ACMER P3?
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster
Poster

Engraving concepts utilizing the ACMER P3

Draw inspiration from the creations of others.

We invite you to join our Facebook group to engage with fellow members and share your creations.

Make a model of your dream house

The dream of building a house starts with handicrafts

Earrings and small pendants are good business options

Hierarchical layered design makes your works more textured

Add your own style to your skateboard

A silhouette can also express your attitude

Ultra-fine metal engravings, pins, brooches and others

Stamp engraving, enrich your small business

Build your dream house on your style

Crafts are not only beautiful to watch, but also very practical

ACMER P3

Revolutionizing the Industry

Dual Lasers, No Limits

From 150+ to 300+, full material coverage.

Engraving Never This Swift

CoreXY structure + intelligent motion algorithm

compensation guarantee the precision.

Extra Long Working Area

Conveyor accessory shatters the boundaries of

engraving area restrictions.
ACMER P3 IR & Diode Dual Laser Engraver

2 IN 1 and 48W Powerful Laser
ACMER P3 IR & Diode Dual Laser Engraver-48W-24W-2W IR laser

Enclose The Machine，Unleash Your Creativity

- 10W+2W IR Dual-Laser: Unleash Your Creativity
- 2W IR Laser: Perfectly suited for metal engraving.
- 24W Diode Laser: Precise Engraving and Fast Cutting
- 48W Diode Laser: Powerful Cutting

  • ACMER P3 2IN1 IR＆Diode

  • ACMER P3 48W/24W

  • ACMER P3 24W

  • ACMER P3 2W IR

First Enclosed Dual-Laser Engraver

To overcome the limitations of material compatibility, we combine infrared and diode lasers into one module to meet the challenges of different starting conditions and engraving requirements. At the same time, with extremely fine spot size (IR: 0.02*0.02mm/Diode: 0.06*0.08mm), we can create more delicate works.

Wood 15mm

Acrylic 12mm

MDF 6mm

The data presented above represent the maximum thickness specifications.

48W Laser Powerful Cutting

We use advanced laser compression technology to combine eight 6W diode lasers into a powerful 48W laser module. It not only has powerful cutting capabilities, but also has a fine 0.09*0.1mm spot size, a powerful helper for engraving and cutting.

Wood 50mm

Acrylic 35mm

MDF 10mm

Stainless steel 0.1mm

The data presented above represent the maximum thickness specifications.

Precise Engraving and Cutting

24W diode laser, enables fast engraving on materials such as wood, ceramics, and plastics, offering fine and textured results.

Wood 25mm

Acrylic 20mm

MDF 8mm

The data presented above represent the maximum thickness specifications.

Perfectly suited for metal engraving

The 2W infrared laser excels at engraving a diverse range of metals, including gold, silver, copper, aluminum, iron, and stainless steel. Its short focal length and smaller spot size render it ideal for achieving clear and precise engravings on metal surfaces.

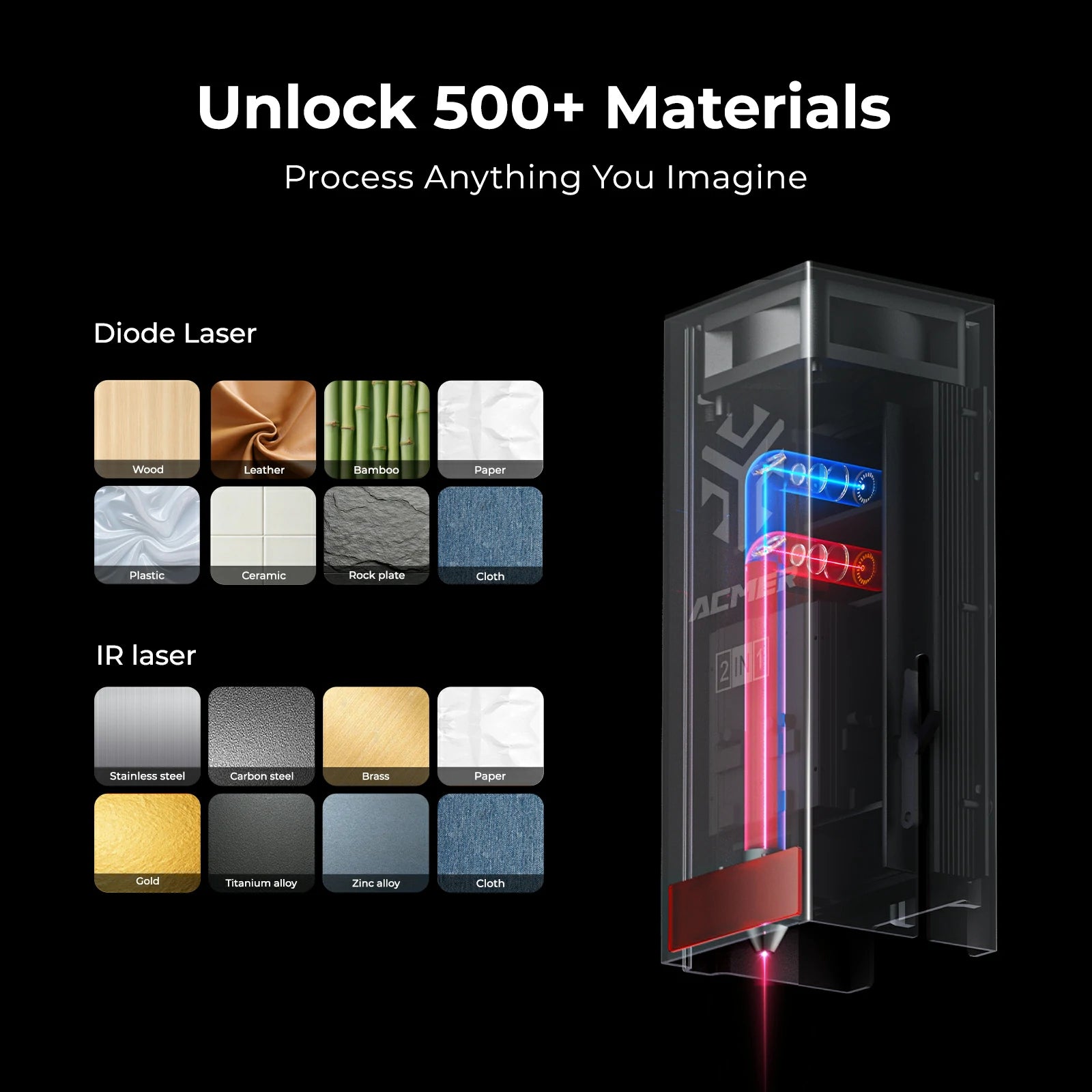

Over 300 materials - comprehensive source for creativity

By integrating the benefits of both infrared and diode lasers, the ACMER P3 is capable of engraving on a wider variety of materials. It imposes no restrictions on material use, allowing for limitless creativity.

  • 2W 1064nm

    Infrared(IR) Laser

  • 24W/48W 455nm

    Diode Laser

Effortlessly upgrade your laser

Upgrading is straightforward—simply replace the laser module without the need for additional machinery, slide replacements, or wiring harness changes. This approach minimizes both costs and complications.
Video Thumbnail
ACMER P3 IR & Diode Dual Laser Engraver

CoreXY Structure
ACMER P3 IR & Diode Dual Laser Engraver-corexy structure

Innovative CoreXY Structure

Ultra Precision at High Speeds!

Blur-free engraving at high speeds is now a reality with the ACMER P3, the first enclosed laser engraver to utilize the innovative CoreXY structure. This groundbreaking technology ensures precise results, revolutionizing the industry.
Video Thumbnail

48000mm/min

Engraving Speed

Breakthrough the speed limit, ACMER P3 operates at an acceleration of 2000mm/s², reaching the highest level in the industry, bringing you a high-speed engraving experience.

Better Stability

The innovative CoreXY structure performs motion algorithm compensation, greatly improving the stability of engraving.
Video Thumbnail
Video Thumbnail

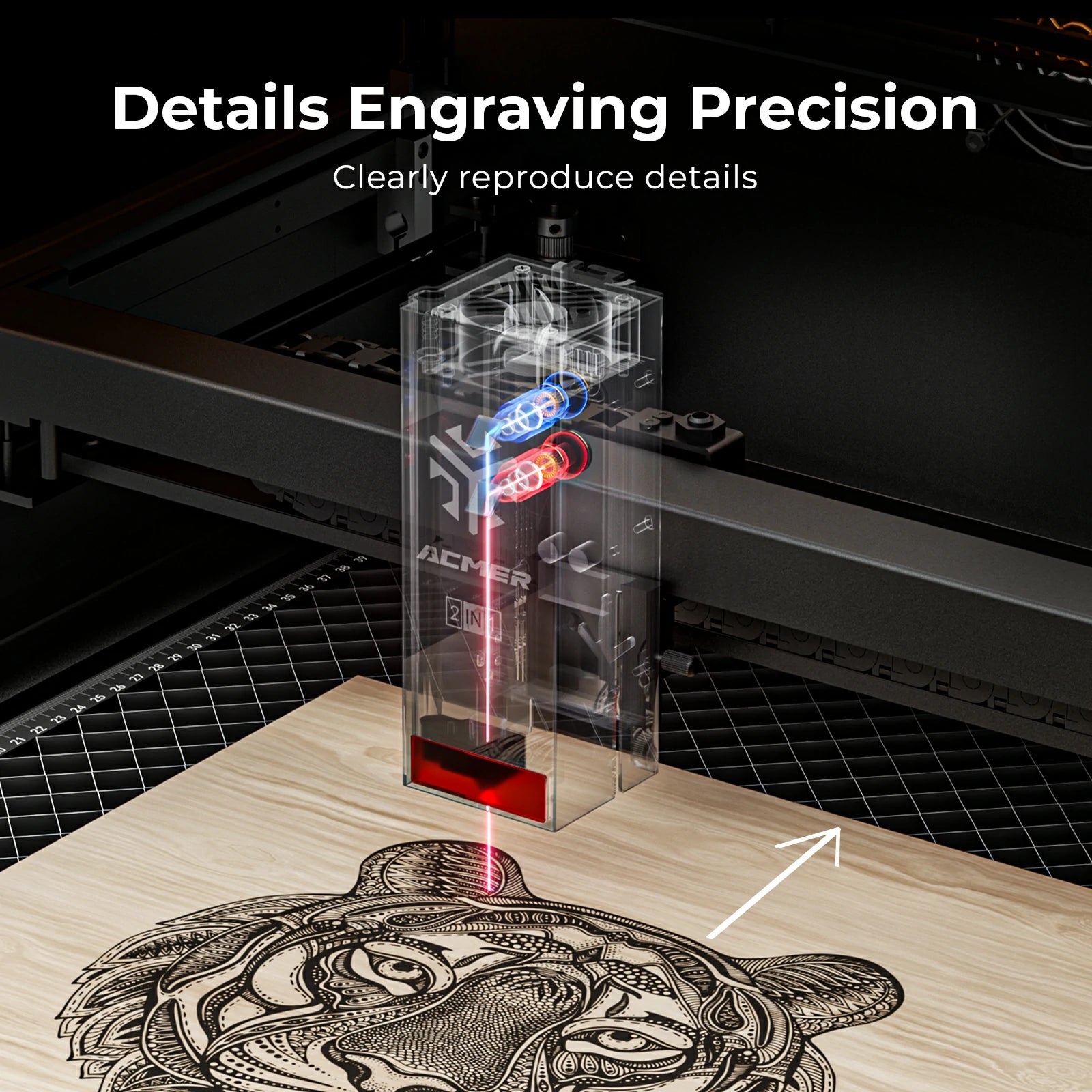

Engraving Precision

Through motion algorithm compensation and advanced laser compression technology, machine engraving is more accurate and can carve more exquisite works.
ACMER P3 IR & Diode Dual Laser Engraver

P3 Multiple Functions
Video Thumbnail

HD Camera for Accurate Positioning and Real-time Preview

Using 5 layers of high-definition optical glass, it can be previewed in real time, directly connected to the motherboard, which can achieve more stable data transmission, and the camera is 100% compatible with LightBurn, making the operation more convenient.

100% LightBurn Compatible

400*400mm Visible Area

Precise Positioning

Quick Calibration

Real-time Preview

5 Million Pixels

Fast and Reliable Transmission

400*400mm Visible Area

The entire internal working area of the machine is directly visible through the camera, allowing for real-time monitoring from the computer.

Precise Positioning

The engraving area can be intuitively viewed and adjusted, allowing for quick alignment of the design pattern with the workpiece, achieving precise positioning and reducing manual alignment errors.
ACMER P3 IR & Diode Dual Laser Engraver-Integrated Fume Extraction System

Integrated Fume Extraction System

ACMER P3 Fume Extraction System is designed to optimize airflow within the machine's enclosed environment, ensuring effective smoke exhaust and preventing combustion. This also reduces dust accumulation inside the machine, creating a clean and safe operating environment.

Aerodynamic Design

Maximize smoke extraction efficiency

4000 RPM Exhaust Fan

Powerful fan ensures rapid and efficient smoke removal

Micro-Airflow Mode

Dirty lenses can significantly affect the lifespan of the laser module. Our innovative Micro-Airflow Mode generates a weak airflow that effectively prevents smoke backflow, protecting the lenses and extending the module's service life. This reduces the frequency of cleaning and maintenance, saving your time and effort.

Extend laser module life by  20%
ACMER P3 IR & Diode Dual Laser Engraver

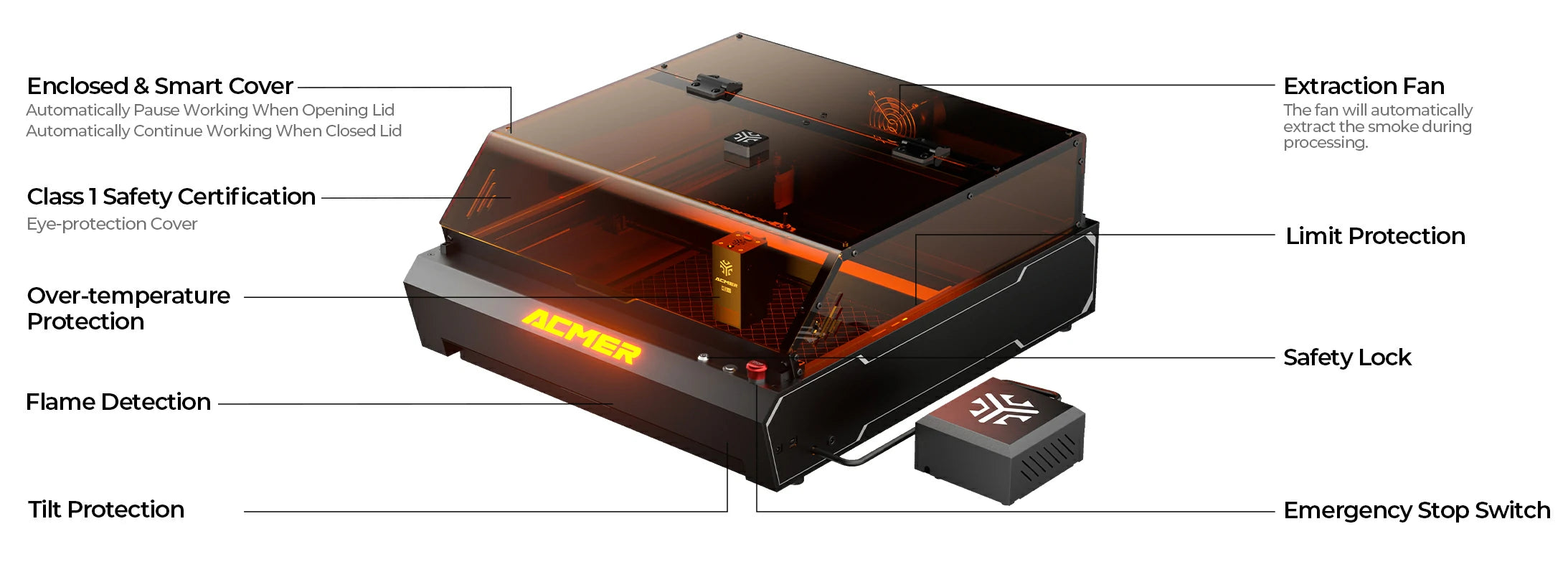

8 Layers of Safety

Metal Frame

Over-temperature Protection

Class 1 Laser Safety

Limit Protection

Tilt Protection

Flame Detection

Safety Lock

Emergency Stop Switch

70%

Noise Reduced

95%

Smoke and Dust Reduced

95%

Laser Filtered
Video Thumbnail

Automatically Pause When Opening Lid

The machine will immediately pause operations and beep when the lid is opened, ensuring your safety and allowing you to monitor its status.

*If you are a professional laser engraver, you can turn off this function (including the buzzer) by updating the latest firmware.

Automatically Continue Engraving

After the lid is opened and the machine stops, closing the lid will automatically resume engraving.
Video Thumbnail

Convenient pull-out drawer designed for user accessibility

Easy to Clean

Conveniently cleans up debris from engraving and cutting

Easy Material Replacement

Convenient to replace materials and the honeycomb bed and avoid damage caused by impact during replacement.
ACMER P3 IR & Diode Dual Laser Engraver

One-stop Solution
Video Thumbnail

Breaking Limits 10X Growth!

Small businesses often struggle with the limitations of engraving large-scale projects. Our conveyor(sold seperately) has significantly expanded the creative space, increasing the engraving range from 400mm to an impressive 4000mm and with the potential for further upgrades.

Smoke Purified 95% Filtered!

When used in conjunction with our air purifier (sold seperately), the laser engraver can effectively remove smoke and dust, allowing you to use it indoors without any concerns about air quality.

Excellent compatibility

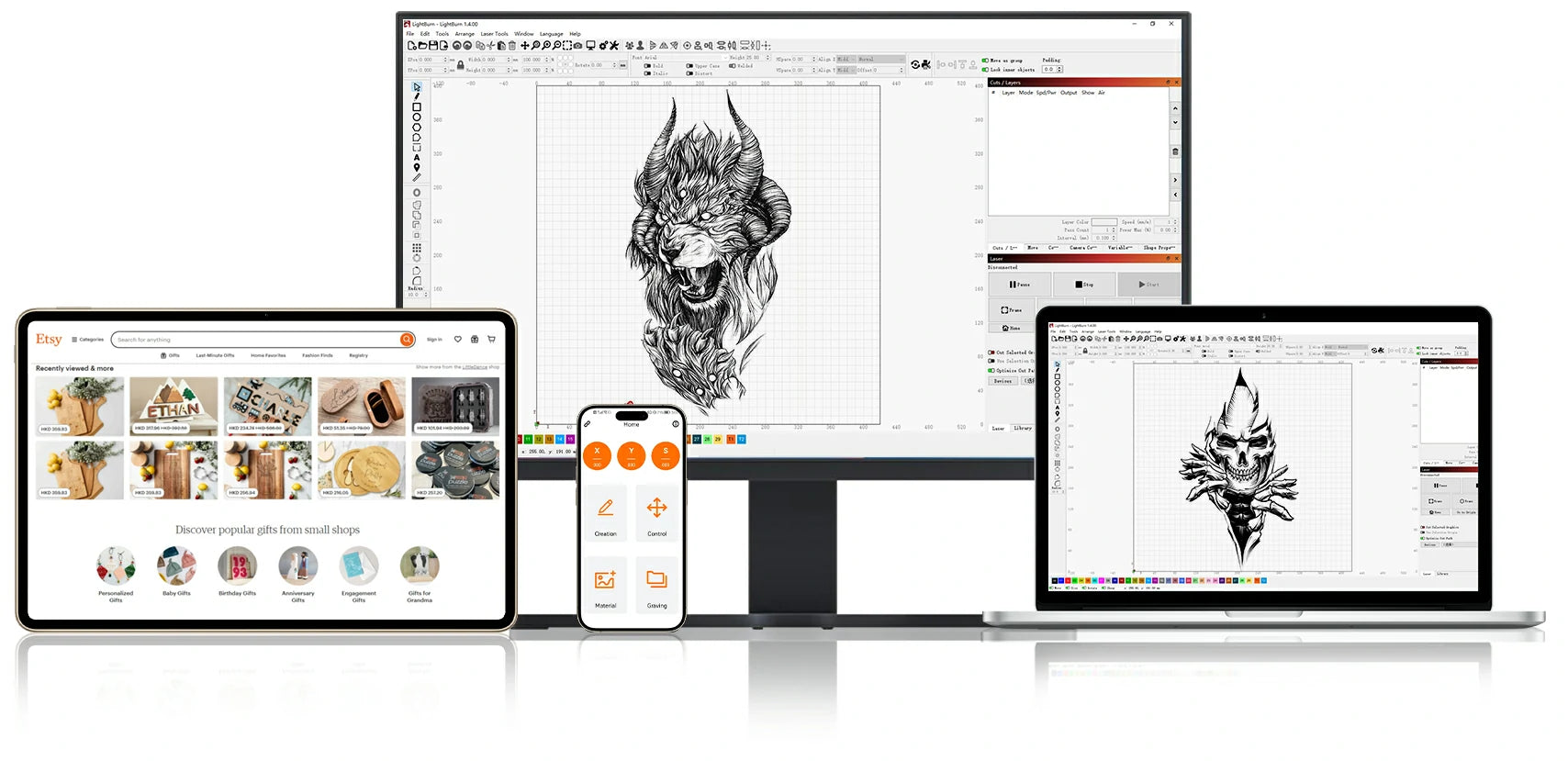

Supports using ACMER APP, lightburn and laserGRBL to connect to laser machines, supported systems: Windows/MacOS/Linux/iOS/Android,

Input lmage Format: JPG, PNG, BMP, GIF, SVG, Al, etc.

Variety of Accessories for Better Engraving Ecology

The ACMER P3, a Class 1 safety dual laser engraving machine, is designed to drive your business success. Its superior speed and enhanced performance allow you to fulfill orders more quickly and efficiently meet customer demands.
Buy Now

ACMER P3 Specifications
Laser Module P3 24W P3 48W P3 2 in 1 Dual Laser P3 2W IR
Laser Output Power 24000mw 48000mw IR: 2000mw + Diode: 10000mw 2000mw
Laser Type Diode Laser Diode Laser IR Laser + Diode Laser IR Laser
Laser Wavelength 455±5nm 455±5nm IR: 1064±1nm / Diode: 455±5nm 1064±1nm
Spot Size 0.07*0.09mm 0.09*0.1mm IR: 0.02*0.02mm / Diode: 0.06*0.08mm 0.02*0.02mm
Assembly Method Pre-assembled Pre-assembled Pre-assembled Pre-assembled
Working Area Size 400*400mm 400*390mm 400*390mm 400*400mm
Machine Size 585*660*270mm 585*660*270mm 585*660*270mm 585*660*270mm
Machine Weight 19KG 19KG 19KG 19KG
Fuselage Material Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile
Movement Structure Industrial Guide Rail + CoreXY Industrial Guide Rail + CoreXY Industrial Guide Rail + CoreXY Industrial Guide Rail + CoreXY
Movement Accuracy 0.01mm 0.01mm 0.01mm 0.01mm
Air Assist System 30L/min 30L/min 30L/min /
Maximum Engraving Speed 48000mm/min 48000mm/min 48000mm/min 48000mm/min
Machine Power 120W 216W 96W 96W
Power Input DC 24V 5A DC 24V 9A DC 24V 4A DC 24V 4A
Camera Resolution 2592 x 1944 Pixels 2592 x 1944 Pixels 2592 x 1944 Pixels 2592 x 1944 Pixels
Horizontal Gyroscope Yes Yes Yes Yes
Emergency Stop Switch Yes Yes Yes Yes
Power Lock Yes Yes Yes Yes
Flame Detector Yes Yes Yes Yes
Alarm Buzzer Yes Yes Yes Yes
Lid-Open Stop Yes Yes Yes Yes
WiFi Module Yes Yes Yes Yes
TF Card Yes Yes Yes Yes
Engraving Material Wood, bamboo, paper, plastic, leather, PCB board, aluminium oxide, non-reflective coating and lacquered metal, ceramic, stainless steel, some dark opaque acrylic, etc. Wood, bamboo, paper, plastic, leather, PCB board, aluminium oxide, non-reflective coating and lacquered metal, ceramic, stainless steel, some dark opaque acrylic, etc. Wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective coating and lacquered metal, ceramic, gold, silver, copper, aluminum, iron, stainless steel, ABS, acrylic, PC, stone, etc. Gold, silver, copper, aluminum, iron, stainless steel, ABS, acrylic, PC, leather, stone, etc.
Communication Method USB / APP /TF USB / APP /TF USB / APP /TF USB / APP /TF
File Format NC, DXF, BMP, JPG, PNG, etc. NC, DXF, BMP, JPG, PNG, etc. NC, DXF, BMP, JPG, PNG, etc. NC, DXF, BMP, JPG, PNG, etc.
Operation System macOS, Windows, Linux, Android, iOS macOS, Windows, Linux, Android, iOS macOS, Windows, Linux, Android, iOS macOS, Windows, Linux, Android, iOS

ACMER P3 Machine Description and FAQs

Are the P2 laser modules compatible with the ACMER P3?

No，they are not compatible.

Can the ACMER P3 laser modules be used on the P2?

Yes, the P3 24W diode laser, 2W IR laser and Dual-Laser can be used on ACMER P2. However the 48W diode laser is not recommended.

Can the A2 IR laser module be used on ACMER P3 machine?

No，the A2 can be used on the P1 and P2, but it is not compatible with the P3.

What is the difference between the A2 IR laser module and the ACMER P3 2W IR laser module?

The A2 is a long-focus laser, while ACMER P3 2W is a short-focus laser with a smaller laser spot, resulting in more precise engraving.

What materials can ACMER P3 engrave and cut？

Diode laser can cut: paper, wood, leather, MDF, felt, some dark opaque acrylic.



Diode laser can engrave: paper, wood, leather, MDF, stainless steel, some dark opaque acrylic, bamboo, fabric, dark glass, ceramic, jade, marble, shale, cement, brick, plated metal, painted metal.



IR laser can engrave: metal, plastic, non-transparent acrylic (except white).

Is the ACMER P3 suitable for beginners?

Absolutely! The ACMER P3 is a fully enclosed laser engraver with guaranteed safety features. Multiple laser modules cater to your creative needs, and the user-friendly high-definition camera assists in precise positioning. 100% LightBurn compatibility ensures ease of use.


Practice makes perfect, so keep creating and share your masterpieces! Join the ACMER community at https://www.facebook.com/groups/1614455505653986 to share your creations.

What is the difference between IR laser and diode laser?

IR laser and diode laser are two different wavelengths of light that produce different engraving effects on various materials.



IR laser is the perfect choice for metal engraving, such as gold, silver, copper, aluminum, iron, stainless steel, etc. It produces a smaller laser spot, resulting in more precise engraving. Additionally, it can also engrave materials like ABS, acrylic, PC, leather, and stone.



Diode laser, on the other hand, is the ideal choice for wood engraving. It provides precise engraving and is also suitable for materials like ceramic, acrylic, and plastic. Moreover, diode lasers have a stronger cutting capability.



When choosing a laser for engraving, consider the material you want to engrave and select the appropriate laser based on its characteristics.

What is the maximum size that ACMER P3 can engrave?

The maximum engraving size for the ACMER P3 depends on the laser modules and the presence of a conveyor. With a 24W diode laser or 2W IR laser, the maximum engraving size is 400mm x 400mm. For models with a 48W diode laser or dual-laser, the maximum engraving size is 400mm x 390mm. However, if the machine is equipped with our optional conveyor, the engraving size can be expanded to a maximum length of 4000mm, allowing you to engrave larger objects or continuous designs.

Are the honeycomb beds for ACMER P3 and P2 interchangeable?

The honeycomb bed used in ACMER P3 has positioning holes for fixation, which prevents misalignment during the pulling process. The height of the honeycomb bed for ACMER P3 is 13mm, while other honeycomb beds have a height of 22mm. Therefore, the honeycomb bed for ACMER P3 is compatible with P2. However, the honeycomb beds for P2 cannot be used on ACMER P3.

Is the ACMER P3 fully compatible with LightBurn？

Yes, ACMER P3 is 100% compatible with LightBurn software.

Description

World's first enclosed IR and diode dual laser + Corexy structure laser engraving machine

Laser engraving has always been an area where innovation is crucial. From the early days of simple etching to today's high-precision machines, the industry has evolved rapidly. But even in such a fast-paced field, the ACMER P3 Enclosed Infrared and Diode Dual Laser Engraver is a groundbreaking innovation that earns it the title of Best Enclosed Dual Laser Engraver of 2024. This machine is not just another new product on the market; its dual laser technology and unique CoreXY architecture represent a major leap forward. These features set it apart and make it a major breakthrough in the laser engraving industry.

What Makes the ACMER P3 Stand Out?

IR and Diode Dual Laser Technology

One of the most compelling aspects of the ACMER P3 is its dual laser technology. By combining an IR (infrared) laser and a diode laser, the ACMER P3 offers unprecedented versatility and precision while unlocking the material limitations of a single laser, enabling engraving on more than 300 materials.

IR Laser vs. Diode Laser

The IR laser operates in the infrared spectrum, which is particularly effective for engraving materials like metal and certain plastics. On the other hand, the diode laser is more suitable for materials like wood, acrylic, and leather. Each type of laser has its strengths, and by integrating both into a single machine, the ACMER P3 allows users to switch between them based on the material and desired outcome.

Benefits of Combining IR and Diode Lasers

The combination of these two laser types means that users no longer need to invest in multiple machines or compromise on the quality of their engravings. The dual laser system ensures that each material is engraved with the appropriate wavelength, resulting in higher precision and better overall results. This versatility is particularly valuable for users who work with a wide range of materials.

Enclosed Design for Safety and Precision

Another outstanding feature of the ACMER P3 is its fully enclosed design. This is not only a safety feature; it also has an internal fan that can simultaneously clear out the smoke and harmful gases inside, and can also purify the air when used with an air purifier, allowing the laser engraver to be used indoors.

Importance of Safety in Laser Engraving

Laser engraving machines, especially those equipped with high-powered lasers, can pose significant safety risks. The ACMER P3's enclosed design is certified by the industry's authoritative Class 1, ensuring that users are protected from accidental exposure to laser radiation, which could cause serious injury. In addition, the ACMER P3's enclosure helps control fumes and debris, keeping the workspace clean and reducing the risk of inhalation.

CoreXY Structure: A Revolutionary Design

The CoreXY structure is another feature that sets the ACMER P3 apart from traditional laser engravers. This innovative design contributes to both the machine's speed and accuracy, making it a true game-changer in the industry.

Understanding the CoreXY Structure

At its core, the CoreXY structure is a mechanical arrangement that allows for more precise movement of the laser head. Unlike traditional designs where the laser head moves independently on the X and Y axes, the CoreXY system uses a complex pulley and belt mechanism that coordinates movement along both axes simultaneously.

How CoreXY Differs from Traditional Designs

Traditional laser engravers often rely on a gantry system where the laser head moves along one axis at a time. While effective, this setup can introduce errors and limitations in speed. The CoreXY design, however, allows for more fluid and synchronized movement, reducing the potential for errors and increasing the machine's overall efficiency.

Advantages of the CoreXY Mechanism

The CoreXY structure offers several key advantages. First, it allows for faster movement of the laser head, which translates to quicker engraving times without sacrificing quality. Second, it improves accuracy by reducing the mechanical stress on the system, leading to more precise engravings. Finally, the CoreXY design is more compact and stable, which enhances the machine's durability and longevity.

The Impact of CoreXY on Engraving Quality

The innovative CoreXY structure of the Acmer P3 doesn't just improve speed and efficiency; it also has a significant impact on the quality of the engravings.

Increased Speed and Accuracy

By coordinating movements along both the X and Y axes, the CoreXY structure allows for faster engraving times. But speed isn't the only benefit; this coordinated movement also reduces the risk of misalignment and errors, resulting in more accurate and detailed engravings.

Enhanced Durability and Stability

The compact and stable design of the CoreXY system also contributes to the machine's durability. With fewer moving parts and less mechanical stress, the ACMER P3 is less prone to wear and tear, ensuring that it remains reliable even after extended use.

Applications of the ACMER P3 Laser Engraver

The versatility of the ACMER P3 is one of its greatest strengths. Whether you're a small business owner, a hobbyist, or an industrial user, this machine has something to offer.

Versatility Across Materials

One of the most impressive aspects of the Acmer P3 is its ability to engrave a wide variety of materials with precision.

Engraving on Wood, Metal, Plastic, and More

Thanks to its dual laser technology, the ACMER P3 can easily switch between materials, engraving wood, metal, plastic, leather, and more with ease. This makes it an ideal choice for users who need a single machine capable of handling multiple tasks.

Precision in Detailed Work

Whether you're creating intricate designs on metal jewelry or engraving detailed images on wooden plaques, the Acmer P3 delivers exceptional precision. The combination of the dual laser system and the CoreXY structure ensures that even the most detailed work is executed flawlessly.

Ideal for Various Industries

The ACMER P3 is not just for hobbyists or small businesses; it's a powerful tool that can benefit a wide range of industries.

Small Business and Hobbyists

For small business owners and hobbyists, the ACMER P3 offers a cost-effective solution for high-quality engraving. Whether you're creating custom products or offering engraving services, this machine provides the tools you need to deliver professional results.

Industrial and Commercial Use

In industrial and commercial settings, the ACMER P3's 48000mm/min speed, 0.01mm precision, and versatility make it an invaluable asset. From manufacturing to product customization, this machine can handle large-scale projects with ease.

Conclusion

The ACMER P3 IR and diode laser engraver represents a significant advancement in the laser engraving industry. With its dual laser technology, enclosed design, and innovative CoreXY architecture, the machine offers unmatched precision, versatility, and safety. Whether you are a hobbyist, small business owner, or industrial user, the ACMER P3 is the perfect machine for your industry, setting new standards in performance and reliability.

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
G
Gill Oosthuizen

Although I haven’t used this laser cutter for long, my initial impressions are largely positive. It’s a well-built, sturdy machine that offers good performance and precision.

Performance
The cutter delivers clean, sharp cuts on various materials like wood and acrylic. However, the recommended power settings in the manual aren’t always accurate and may require manual adjustments based on the material.

Usability
While generally user-friendly, there’s no built-in touchscreen, so control relies on a mobile or PC app, which isn’t as convenient. When adjusting focus, you need to tighten the top screw first and then remove the focus leg. This process may require extra attention to ensure the correct focus is maintained.

Pros:
Solid build quality
Precise cuts on various materials
Versatile for different projects

Cons:
No touchscreen; app-based control only
Focus adjustment requires tightening the top screw and careful setup
Manual’s power settings may not be fully accurate

Final Thoughts
Despite some quirks, like the focus adjustment process and power settings, this laser cutter is well-built and delivers strong performance once fine-tuned.
