Best Seller
ACMER P1 10W Laser Engraver and Cutter Machine

ACMER laser engraver shipping

Free Shipping to US & EU

ACMER laser engraver warranty

12 Months Warranty

ACMER laser engraver return

30 Days

Return

ACMER laser engraver support

24/7

Support

$307.00$499.00
ACMER laser engraving machine-klarna payment

1. The bundled order may be shipped in multiple packages.

2. The machine and main accessories will be shipped from U.S. or EU.

3. Other accessories and materials will be shipped from China.

1. The L60 extension kit is a pre-sale product. Buy now and it will be shipped from the Chinese warehouse in 20 days. The shipping time is 10-15 working days.

2. L60 extension kit is not compatible with the R10 Enclosure Box and A500 lightburn camera. We do not support returns for this reason.

Description

  1. Engraving Accuracy 0.01mm,10000mm/min engraving speed.
  2. Sliding table structure Focusing more accurately
  3. ACMER P1 10W does not include an air-assisted pump. If needed, please choose the P1 20W model.
  4. Drag chain design for cleaner wire organization.

Package list

1 x Front Assembly

1 x Rear Assembly

1 x X-axis Assembly

1 x Left Profile

1 x Rught Profile

1 x Laser Model

1 x Wrench

1 x Goggles

1 x TF Card

1 x USB Cable

1 x Adapter

1 x Card Reader

5 x Screw Bag

2 x Keys

3 x Test Board

1 x Adapter Wire

1 x Pneumatic Joint

1 x Air Pipe

US(110V)EU(220V)

Safe & secure checkout

ACMER laser engraving machine-payment method

Order today, ships in 1  business day

ACMER laser engraving machine-shipping method
ACMER P1 10W Laser Engraver Cutting Machine
  • REVIEWS
  • SPECIFICATIONS

What do they say about ACMER P1 10w?

Laser Output Power
10000mw
Laser Type
Diode laser
Machine Power
72W
Laser Wavelength
450±5nm
Power Supply
24V/3A
Focal Length
31mm
Engraving Accuracy
0.01mm
Laser Module Design Life
8000 hours
Maximum Engraving Speed
10,000 mm/min
Working Area Size
400*410mm
Certification
FCC/CE/RoHS/FDA
Control Software
LightBurn/LaserGRBL/ACMER App(Android) / MKS(iOS)
File Format Supported
NC,DXF, BMP,JPG,PNG, etc.
ACMER P1 10W Laser Engraver Cutting Machine

Enhance Accuracy to

The Utmost

P1 adopts an industry-leading four-wheel mechanical structural design,whichoffers superior durability and more stable performance comparedto a three-wheel design. This design ensures the most precise movement.

0.01mm

movement accuracy

ACMER P1 10W Laser Engraver Cutting Machine

Large Working Area

The actual working area size of 400*410mm

is enough for your various creative designs.

ACMER P1 10W Laser Engraver Cutting Machine

High Quality Steel Material

Robust exterior design, featuring a large

area of high-quality steel material for stable engraving.

ACMER P1 10W Laser Engraver Cutting Machine

Only take 3 steps to adjust

the focus in 5 seconds.

1. Pull down the focus lever.

2. Lower the laser module to make the focus lever touch the material surface.

3. Recover the focus lever.

ACMER P1 10W Laser Engraver Cutting Machine
ACMER P1 10W Laser Engraver Cutting Machine

Convenient & Precise Focusing

By adjusting the focus knob, you can conveniently control the vertical height of the laser module, thereby precisely controlling the laser focal length, resulting in a more concentrated laser power and better engraving or cutting effects.

ACMER P1 10W Laser Engraver Cutting Machine
ACMER P1 10W Laser Engraver Cutting Machine

Precise Replication of Details Photo-Quality Experience.


10,000mm/min

Movement Speed

0.01mm

Movement Accuracy

ACMER P1 10W Laser Engraver Cutting Machine
ACMER P1 10W Laser Engraver Cutting Machine

Compressed Spot Technology

Advanced technology enables the spot narrow

down to 0.06mm,and get much cleaner,

thinner, smoother, deeper cuts.

ACMER P1 10W Laser Engraver Cutting Machine

High-performance

ESP32 MCU

optimized motion algorithms,

Combining high-performance chips with the maximum speed can reach 10,000mm/min.

ACMER P1 10W Laser Engraver Cutting Machine
ACMER P1 10W Laser Engraver Cutting Machine

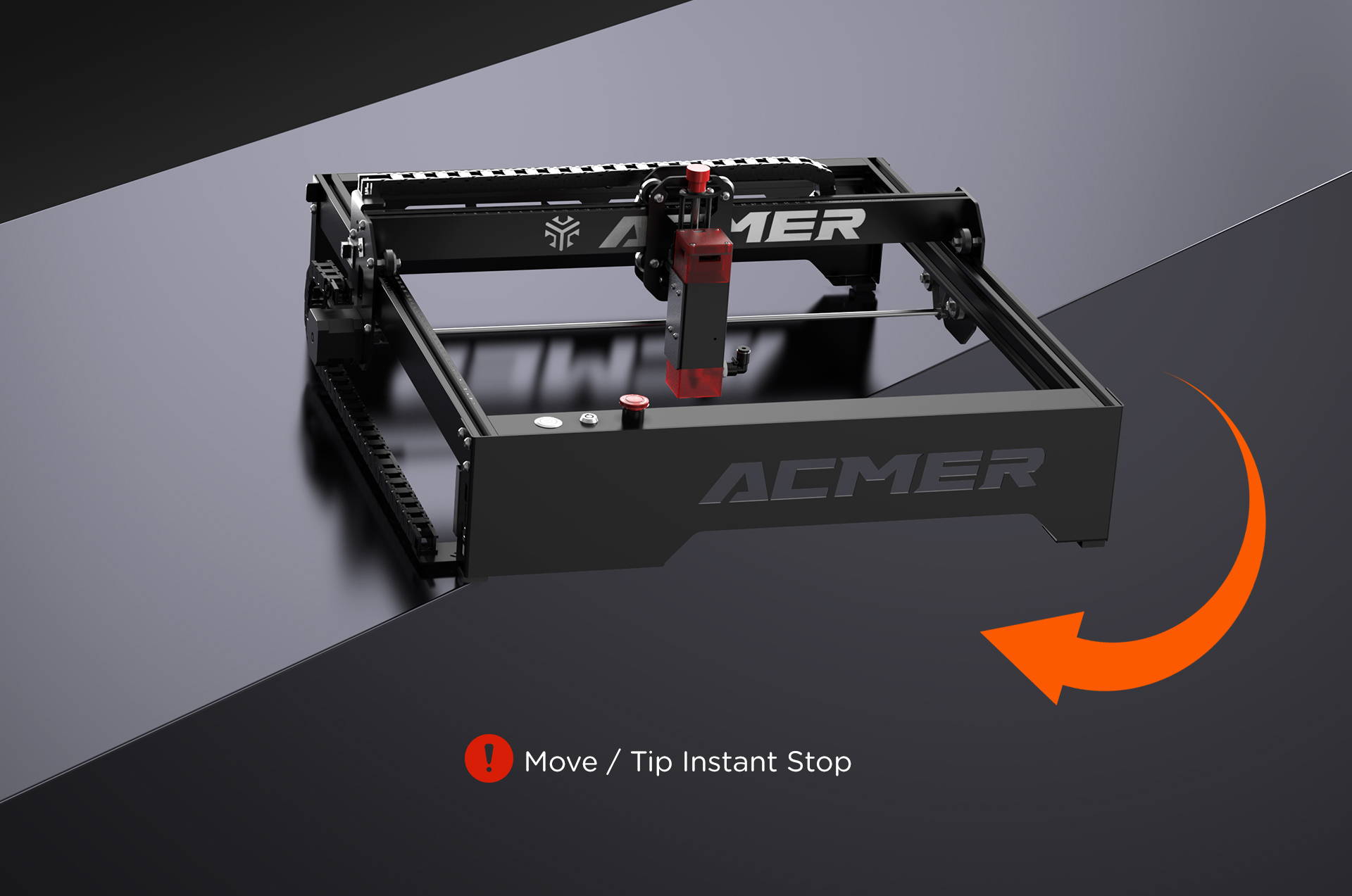

Your Safety is Important

When your desktop unexpectedly undergoes intense vibrations or tilts, there's no need to worry! Equipped with an integrated horizontal gyroscope, the ACMER P1 10W detects everything with exceptional precision. Once the tilt angle exceeds 15°, it intelligently and swiftly stops laser output, ensuring your well-being remains intact.

More Details and Features

Safety is of utmost importance to ACMER P1, which is why it comes with additional features such as a child safety lock and an emergency stop button. In terms of user-friendliness, P1 supports wireless connectivity to the engraving machine through an app via Wi-Fi. Alternatively, you can also use a TF card to load your designs and instructions for the machine to execute.

ACMER P1 10W Laser Engraver Cutting Machine
ACMER P1 10W Laser Engraver Cutting Machine

Accessories Ecosystem

Supports optional accessories such as M2 Rotary Roller,

honeycomb bed, R10 Enclosure Box, C4 air assist pump, and a range of other accessories.

ACMER P1 10W Laser Engraver Cutting Machine

Engravable with Over 10,000 Attractive Items

ACMER P1 10W Laser Engraver Cutting Machine

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
Glen Fehr
Learning curve is manageable

So far I am enjoying experimenting with the laser cutter. More information on material speed and power settings for different materials would be helpful. The tutorials online are very helpful. This is both for Acmer and Light burn. The nice thing about this piece of equipment the possibilities are endless, and only limited by your imagination.

j
jimmy
Accès facile à la Gravure de qualité

Très heureux d'avoir cette machine ! Facile et rapide à monter, un débutant commence très rapidement à pouvoir se faire plaisir. La qualité matériel utilisée est exceptionnelle. Merci ACMER vous êtes aussi très présent pour les client, c'est respectable est très respectueux ! Bravo

h
hochlia
Ensamble parts was easy.

This laser engraver machine does what I wanted it to do. Light wight to move anywhere and it is a true 10 watt laser. I had to see it to believe it. Also, does wonderful projects and very good on the quality. Easy... install the driver and Connect to software laserburn... Overall very good product a bunch applications. Should came with laserburn license for windows which I purchase... and thinking large I did order the enclose for expanding the frame of the laser.

p
provb
The use effect is very good.

I find this laser engrave a great step up from others lasers models. Assembly went quickly and all parts fit together smoothly. It can engrave faster and cut through thicker wood. It engraves well on metal as well as on wood. I have also used LaserGRBL before with my laser engravers, and of course, this Laser engraver Acmer P1 works well with LaserGRBL. I have put together a number of these laser engraver kits before, so I was able to get this one running in under 30 minutes. Overall, this is a great laser engraver that will open up new creative possibilities.

M
Meczner Dávid

ACMER I must admit. the whole engraver is very well made in terms of material and manufacturing quality. The thing to improve is user manual, ease of initial setting for beginer, user and firmware support. The youtube videos are very good, but there are still some shortcommings. But i am sure you will get there. Best wishes from Slovakia.
