ACMER A500 Lightburn Camera

Suitable for all models of ACMER laser engraving machines, including P1, P2, and P1S series. It cannot be used with the Area Extension Kit.

A500 is perfectly compatible with the CAM feature of Lightburn software.

A500 is specifically designed for laser engraving machines. With true high-definition 5MP, the camera can capture clearer images and achieve more accurate positioning.

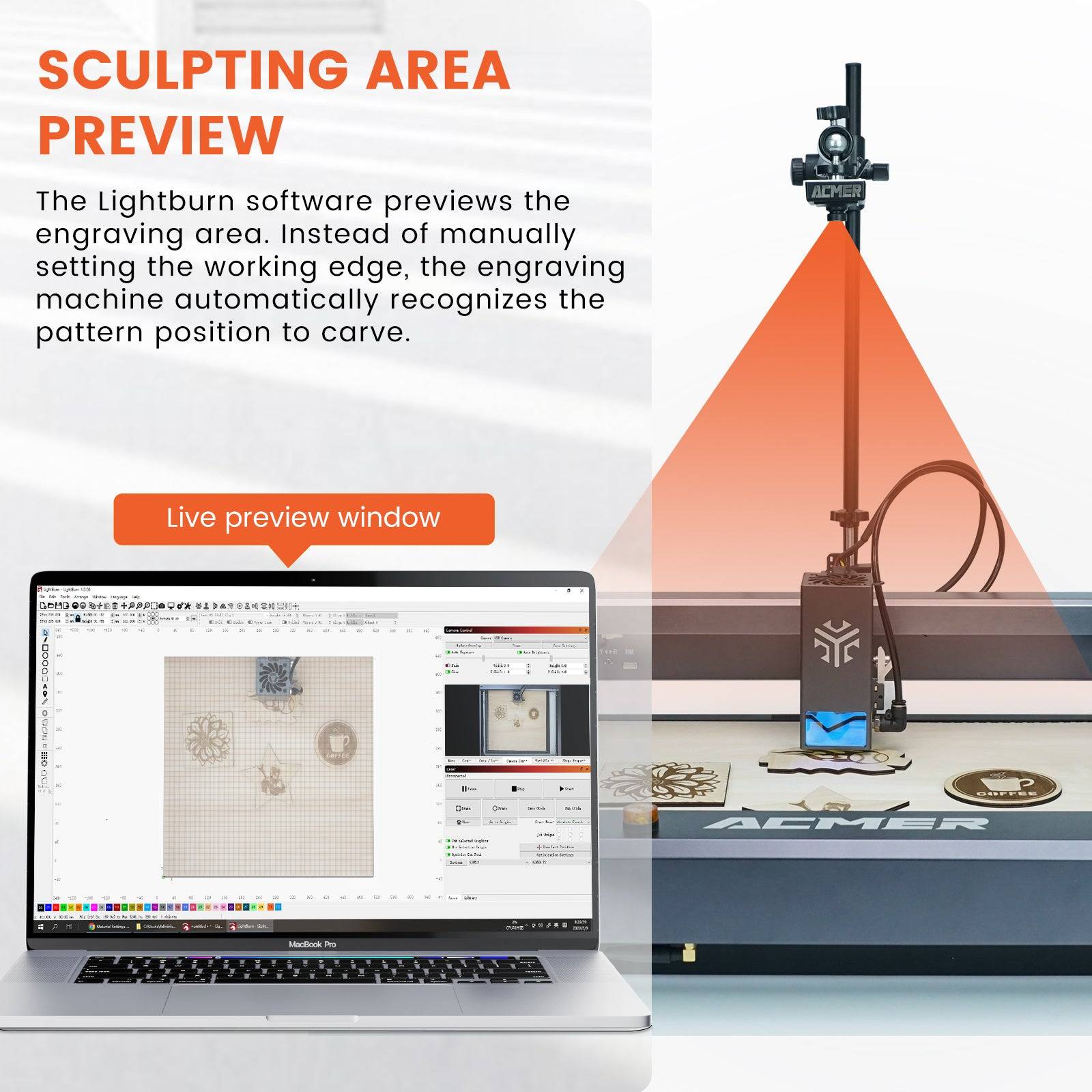

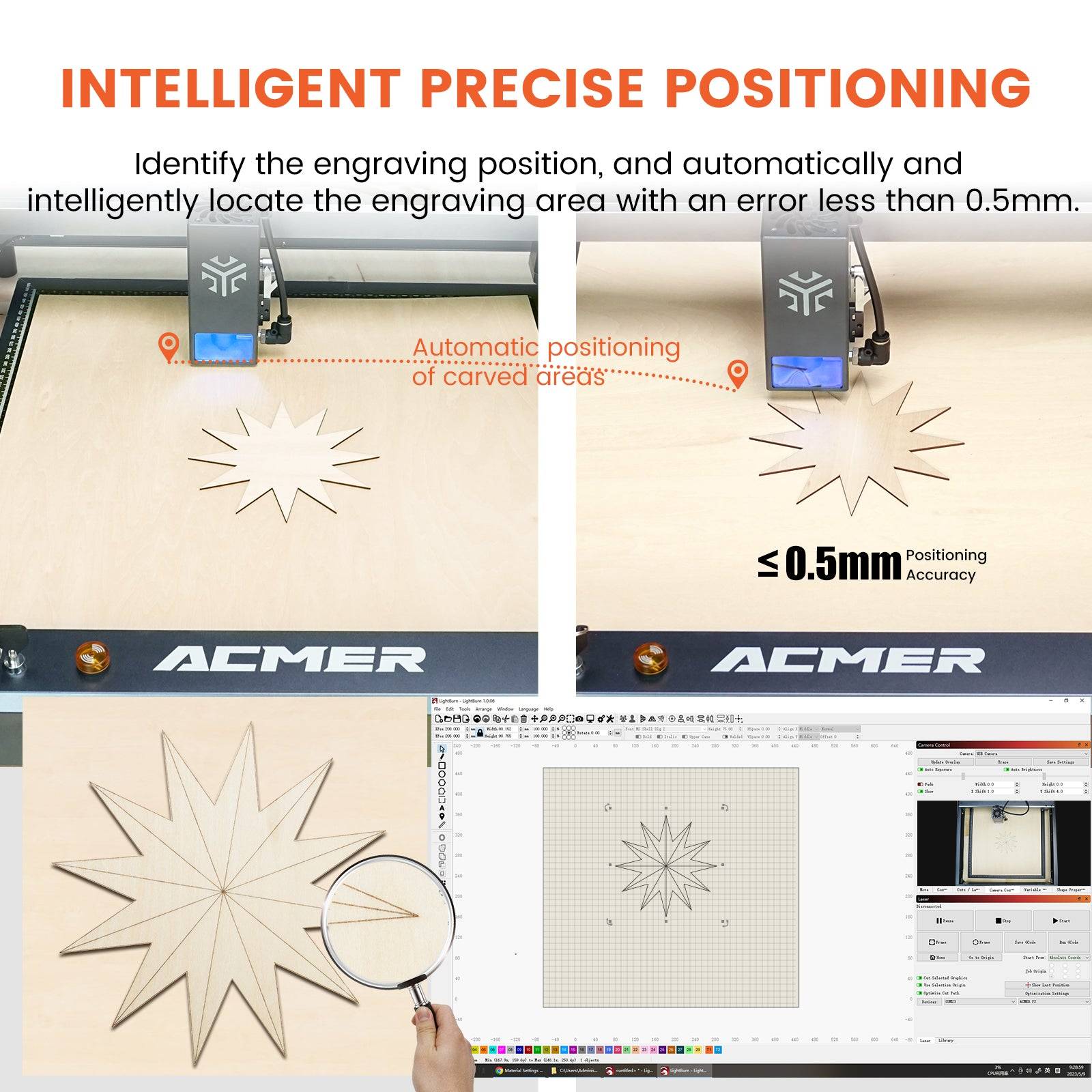

After simple calibration, this camera can automatically locate the position of the object and perform area-based engraving. The positioning error is less than 0.5mm. You can use the Lightburn software interface to move the design to a specific position on the material, and the laser machine will engrave the pattern at that position.

ACMER A500 camera perfectly solves the positioning issue for irregular patterns. Now you can design directly on the surface of the material and see the exact result.

 You can add multiple engraving objects and complete different independent tasks at once.

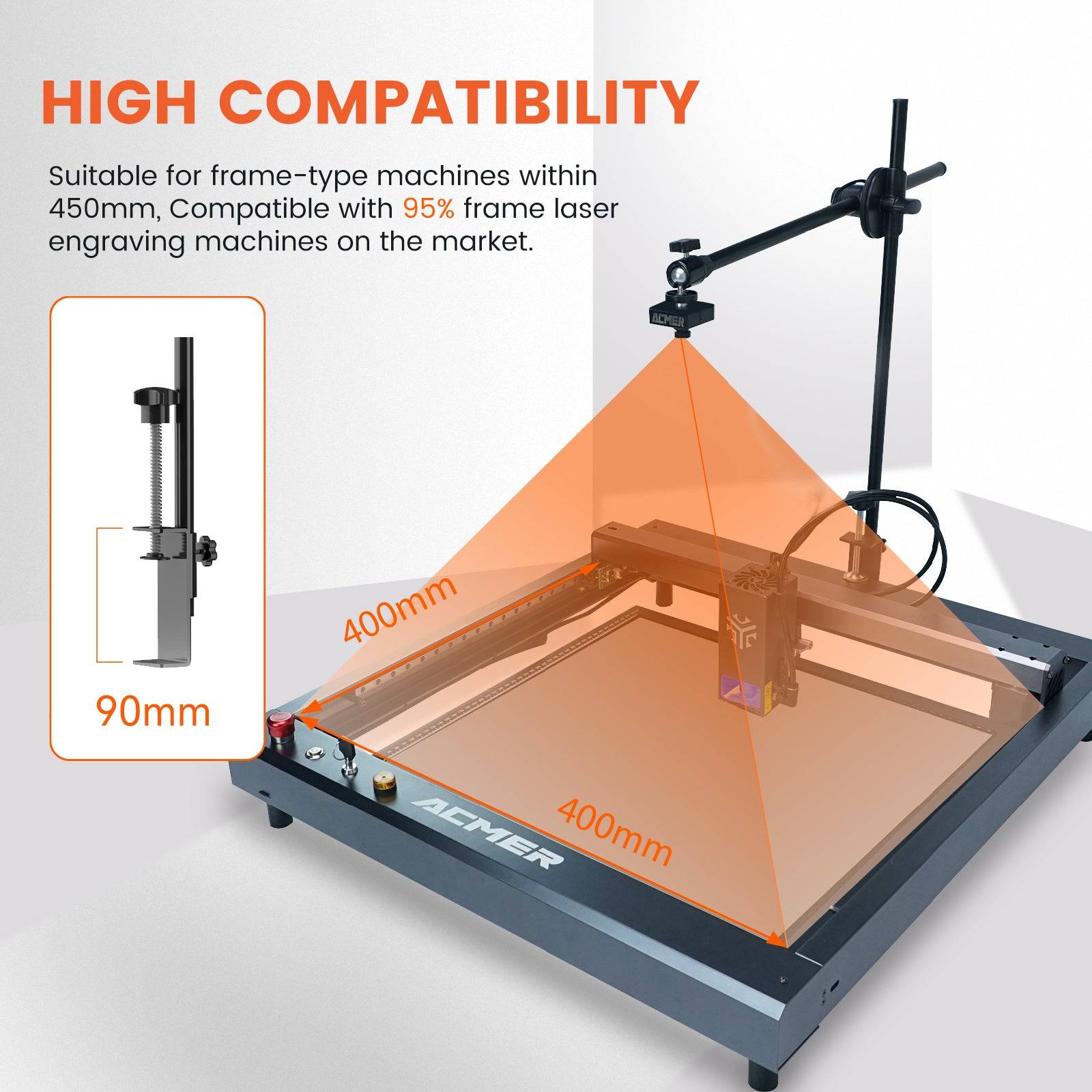

ACMER camera can be adapted to all ACMER or other brand frame laser engraving machines

Note.

Please place the objects as close to the center of the camera as possible, within the 450*450mm working area. As the engraved objects move away from the center of the camera, the accuracy will decrease.
